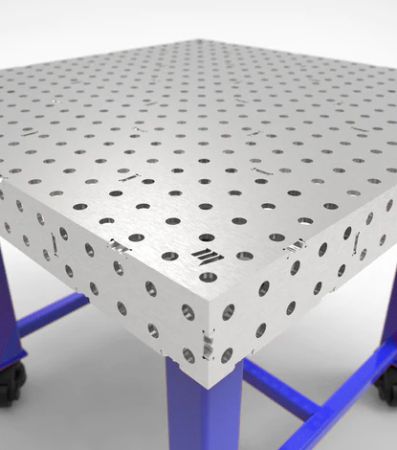

Mac MidiPRO - Modular Fixture Welding Table - 1000 x 1000mm

This is really a PRO table just with a smaller side skirt, Just as true and strong as the PRO but with 100mm side skirts and rib subframe and had the option of being extend. Various sizes availible and lighter on the wallet.
Unlike other imports and cheap constructions we design superior sub-frame cross bracing as this is the most critical part of the table to ensure a truly flat and accurate fabrication table. We design, test and manufacture everything in house and the UK to maintain a high quality of control.

All of our tables and tool include the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling.

We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected so a light coving of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can and eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they looks more awesome than the dreaded mill scale.

MidiPRO Build Options:

• Ready Made: We will assemble, weld and quality check your item.
• Ready Made (Legs): As above but we will cut, assemble and weld your leg kit along with your table top. You will receive your table welded up but legs will require bolting on.
• Ready Made (Legs & Castors): As above but we will cut, assemble and weld your leg kit along with your table top. You will receive your table welded up but legs will require bolting on and castors fitted.


• Leg Kit Spec : 70x70x3 legs / NO bracing Supplied as standard – Mild steel
• Castors: 1000kg Foot Master Type Leveling Castors
