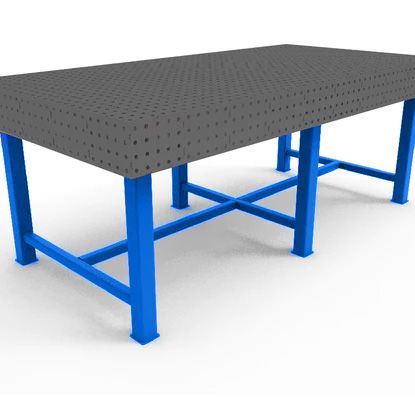

Mac ULTRA 15 - Modular Fixture Welding Table - 2800 x 1400mm

Skip to the beginning of the images gallery

Mac ULTRA 15 - Modular Fixture Welding Table - 2800 x 1400mm

CODE

MAC-ULTRA15-2800X1400

In stock

Order in for UK Mainland delivery between 27/01/2025 to 29/01/2025

Details

Made In Britan > Made In Herefordshire > Made In House

Mac ULTRA15 are the ultimate professional modular welding table fixture system. These tables are designed inhouse using the tab and slot locking interface. Manufactured from high grade S355J2+N All ULTRA tables have a 200mm deep rib sub-frame offering maximum strength and accuracy. The ULTRA15 is supplied with a material thickness of 15mm of the top plates and 10mm sides with chamfer holes.

Holes of system ø16 in grid 100x100 Diagonal

Unlike other imports and cheaper constructions, Mac design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.

As standard all Mac tables and tool includes the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling. Mac also offer 28mm fixture points at 100mm centres.

ULTRA Build Options

Ready Made: Mac will assemble your table on our inhouse custom jig to ensure a truly flat surface, weld and quality check your item. so soon receiving your table you can get fabricating something awesome!
Ready Made + Leg Kit: As above but Mac will all cut, assemble and weld your leg kit along with your table top. You will receive your table assembled/bolted together.
Ready Made + Leg Kit + Castors: As above but Mac will all cut, assemble and weld your leg kit. You will receive your table assembled/bolted together with your castors fitted9.

ULTRA TABLES sized 2.8x1.4m and above are provided with 6x Legs and castors when selected.
Leg Kit Detail : 100x100x3 legs
Castors Detail: Foot master 100S - TABLE TO BE REPOSITIONED / MOVED UNLADEN (NO LOAD ON TABLE)

ULTRA10 High Grade S355J2+N 15mm Thick Top 10mm Side skirts.
200mm fixture skirt/sides with 16mm holes at 50mm centres (4x holes deep)
Made in Britian & Made In House
16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables
Super strong Interlocking sub-frame every 4/5 holes spacing
16mm holes on 50mm centres or 28D on 100mm Centres work with industry standard 16mm & 5/8" tools. Optional threaded holes and other holes sizes available.
Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.
Option: Footmaster Castors 100S 2000kg – Height adjustable
Design, Manufactured in the UK
Blue powder-coated legs as standard
Table legs made of profile 100x100mm
Capacity: 850 kg/leg (adjustable footplate not FM Castors)
Stable and massive construction
The highest quality of workmanship
Perfect flatness of the table (+/- 0,5 mm)
Holes of system ø16 in grid 100x100 Diagonal
Chamfered and fibre laser cut holes for easy tool assembly
Height adjustment of the table with standard legs approx. 880-930mm
Etched scale in the grid 50x50 or 100x100mm
Possibility of using stainless steel covers
Tables can be combined freely to extend a working surface
All tables are reinforced with structural ribs
