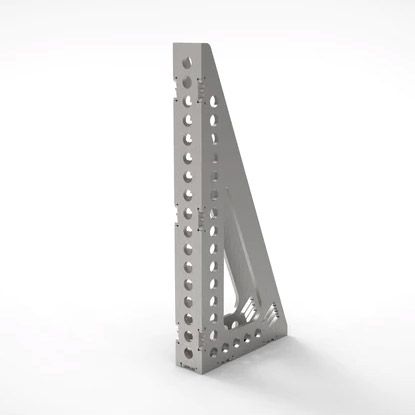

MAC - PRO Slim Jim Tall Modular Fixture Jig Square
CODE
MAC-PROSQ-SLIMTALL
In stock
Modular design to be used with a fixture jig tables with 16mm through holes on 25/50mm centres
Unlike cast ground (Expensive) squares WeldTrue Squares are manufactured as self-build kits giving you accurate low cost tooling.
Note: Some images are a computer rendering representation of the product therefore colour & finish may differ.
- Engineered in house heat dissipating waved key and slots interlock
- Manufactured from 6mm S275 HRPO Mild Steel (Superior)
- All parts highly accurate CNC Laser cut.
- 16mm securing hole 25mm apart on centres to work with all 16mm tooling and tables
- Precision tooling when constructed correctly
- Can be used and secured both vertical or Horizontal
- Laser cut with a guaranteed tolerance of +/-0.1m
- Designed and manufactured in the UK
