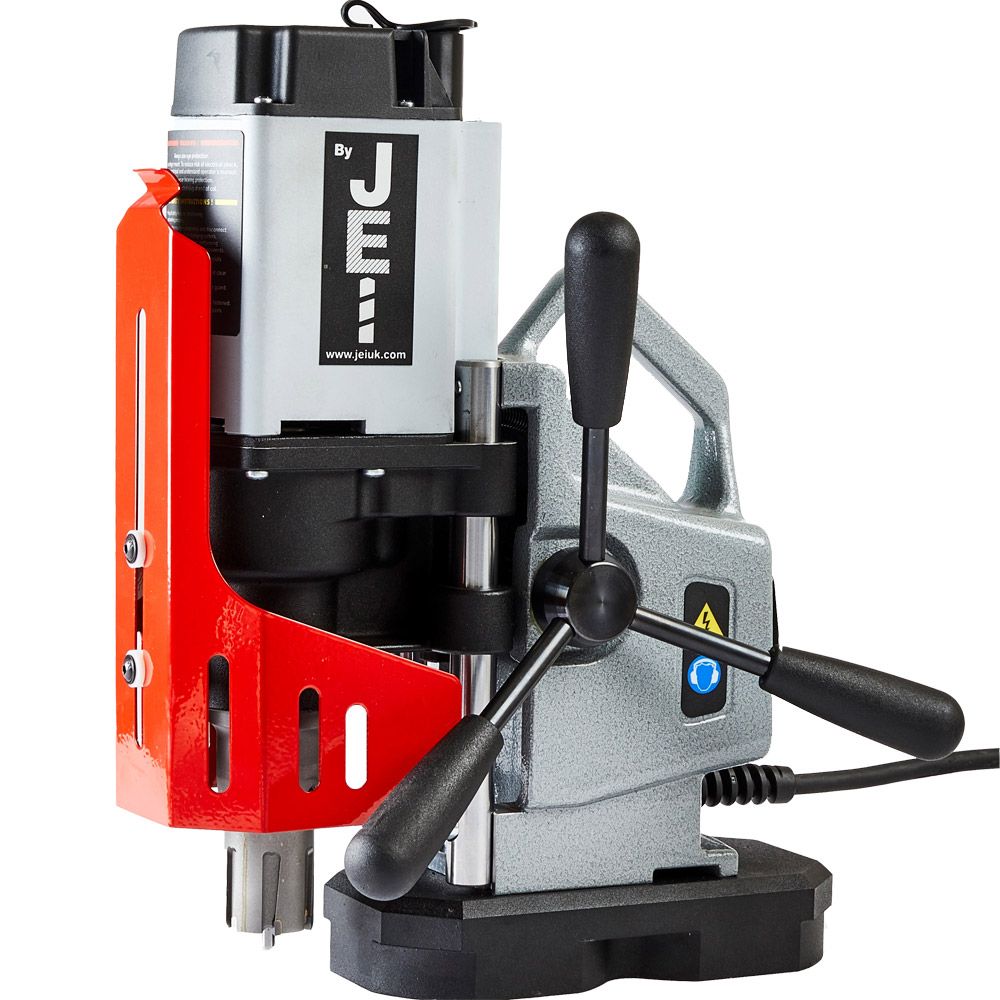

JEI MiniBeast Thin Magnetic Drill 110V or 240V
CODE
JEI-DRILL-MBTS
In stock
The MiniBeast Thin is capable of safely cutting thin materials and painted surfaces from as little as 3mm thick. The machine comes in both 110v and 240v formats making it ideal for site work. The MiniBeast Thin is part of a range of magnetic drills designed to approach the industries most challenging applications.
- Produces holes up to 35mm diameter.
- Suitable for drilling painted steel plates.
- Compact size and weight - ideal for site work.
- Internal coolant reservoir - ensuring maximum cutter life.
- Self correcting slide rails - for maintenance free operation.
- Lightweight - only 11.7kg.
- Hidden motor cable - for added protection.
| Weight | 11.7kg | ||
| Max Stroke | 70mm | ||
| Cutter Capacity (2" depth) | 35mm | ||
| Twist Drill Capacity | 12mm* | ||
| Height Min/Max | 305/380mm | ||
| Length x Width | 290 x 166mm | ||
| Magnetic Base L x W | 220 x 100mm | ||
| Magnetic Deadlift (on 25mm plate) | 900kg | ||
| Min. Material Thickness | 3mm | ||
| Voltage | 110V or 240V | ||
| Noise Level | < 90dB | ||
