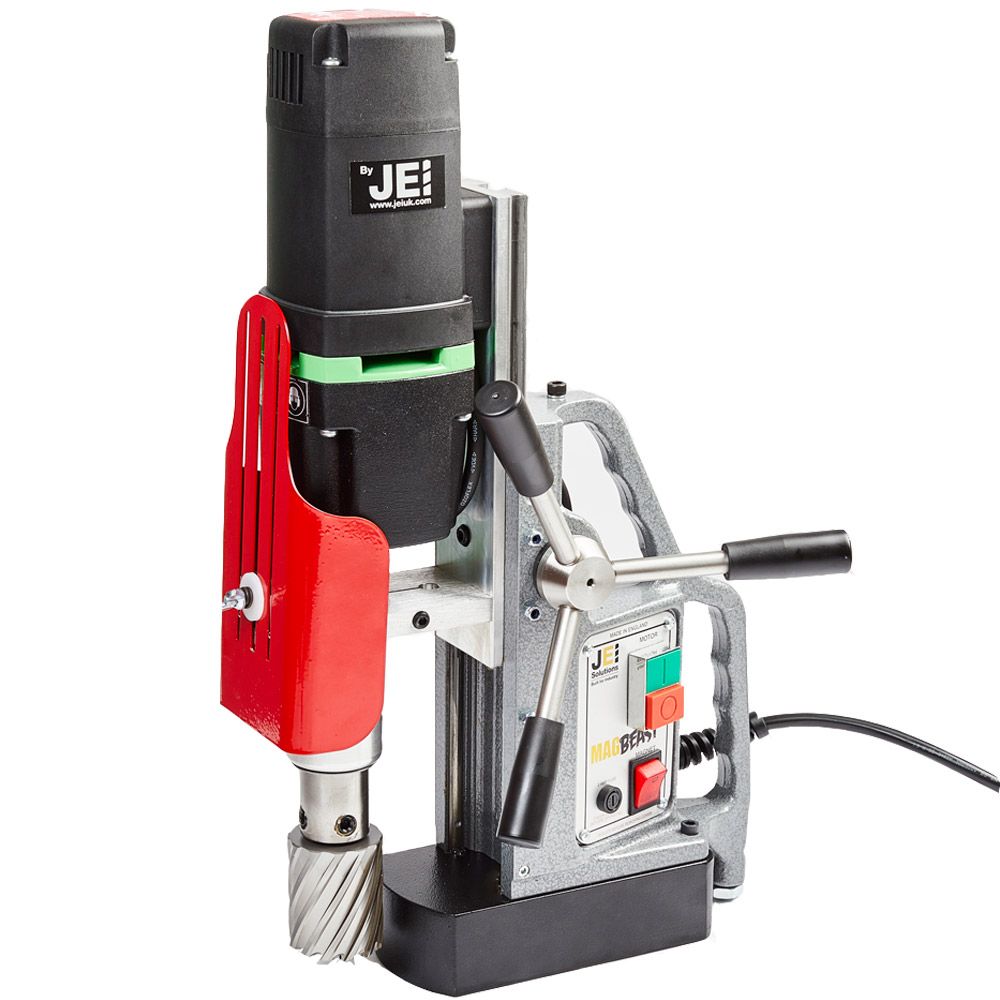

JEI MagBeast HM50 Magnetic Drill 110V or 240V
CODE
JEI-DRILL-HM50
In stock
Rely on the expert capabilities of the MagBeast HM50 which also features extra long drill travel. Perfect for 100mm long cutters and a 50mm diamter cutting capacity. Optional 13mm twist drill chuck compatible. The 360 degree model makes drilling holes close together without moving the machine and is ideal for specila project work.
- Heavy duty 1150W motor - enables larger cutting capacity.
- Weighs only 14kg with a 50mm cutter capacity - unrivalled weight to cutting capacity ratio.
- 150mm total drill travel - facility to use extra-long cutters.
- Maintenance friendly twin slide rails 0 no wearing parts and adjustment free operation.
- Spoke handles can be fitted on the left or right side for operator convenience.
- *Optional swivel base version available.
| Weight | 14kg* | ||
| Max Stroke | 180mm | ||
| Cutter Capacity (2" depth) | 50mm | ||
| Countersink Capacity | 40mm | ||
| Twist Drill Capacity | 13mm* | ||
| Reaming Capacity | 22mm | ||
| Height Min/Max | 380/560mm | ||
| Length x Width | 280x170mm | ||
| Magnetic Base L x W | 90x180mm | ||
| Magnetic Deadlift (on 25mm plate) | 1250kg | ||
| RPM | 250/450 RPM* | ||
| Voltage | 110V or 240V | ||
| Motor | 1150w | ||
| Noise Level | < 90dB | ||
*Some specifications may vary on swivel base model.
